Brooke 103 h.p. 40-F28/30 Marine Motor Restoration…
The history of ML 117 was purely speculative until a meeting with John Brooke in 1991 established that “Smuggler’s” engine beds matched those specified by JW Brooke & Co. for use in their 65-F/10 marine motors, as standardised for use by the RNAS in their fast Seaplane Tenders.
On completion of ‘Operation Adrian’ in 1992, John’s objective was to fully restore the last remaining Brooke 40-F28/30 Marine Motor to pristine condition… but not before a nice cup of tea!
Note: - John Brooke (below) is credited for rebuilding the only remaining 103 h.p. ‘Brooke 40-F/28/30 Marine Motor’ in existence, using all new ex-stock parts at his disposal to complete this rebuild.
Brooke Boat 26/117
Left; John Brooke and Rob Clements
with their newly retrieved Marine Motor partially dismantled for restoration
Brooke Boat 26/117

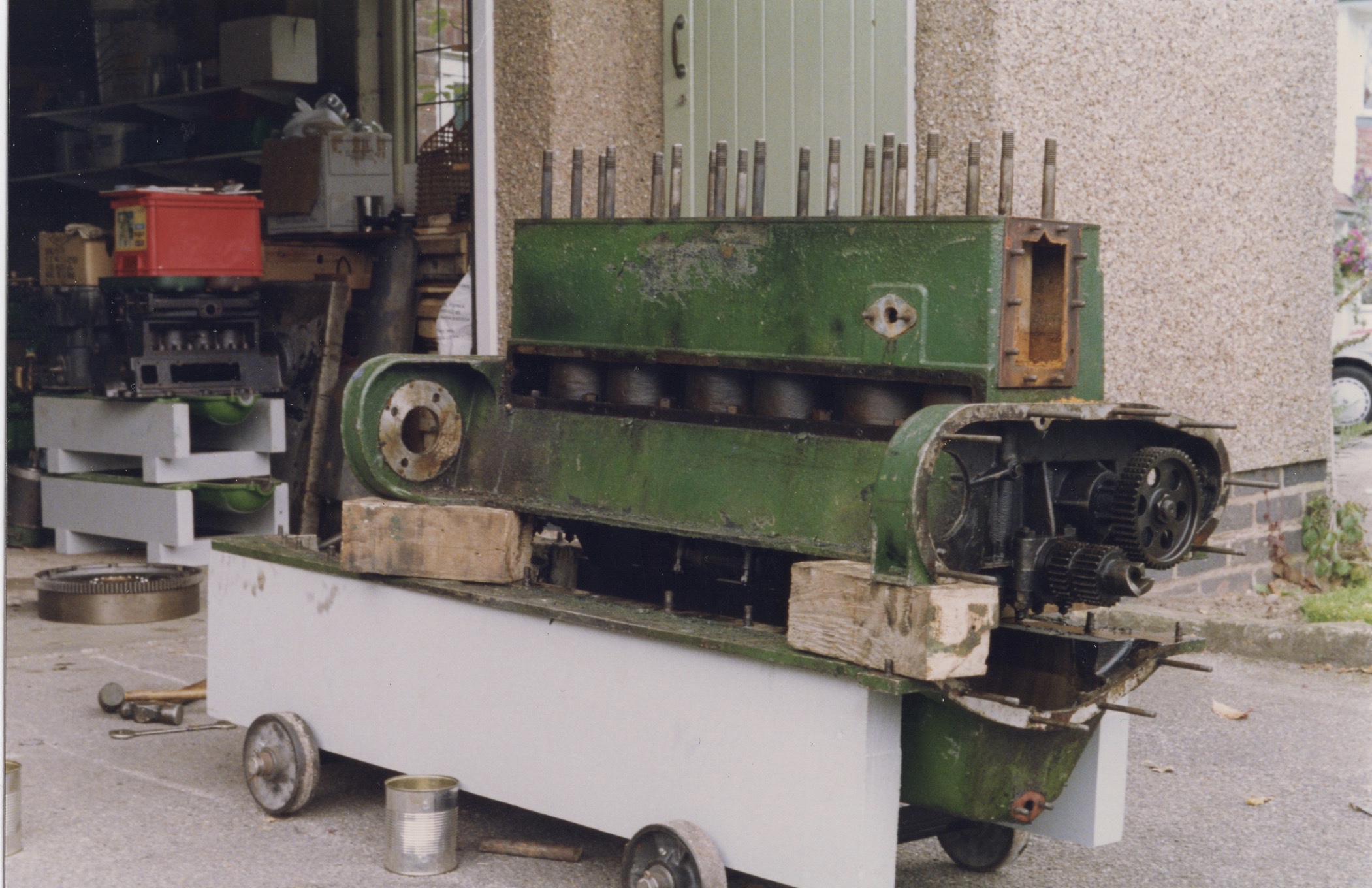

Cylinder Head and Engine build units removed
Brooke Boat 26/117
Cylinder Head bolts removed
Brooke Boat 26/117
Plenum Timing Chains
Brooke Boat 26/117
Water Jacket Removed
…also nice old Brooke Motors sign in the background!
Brooke Boat 26/117

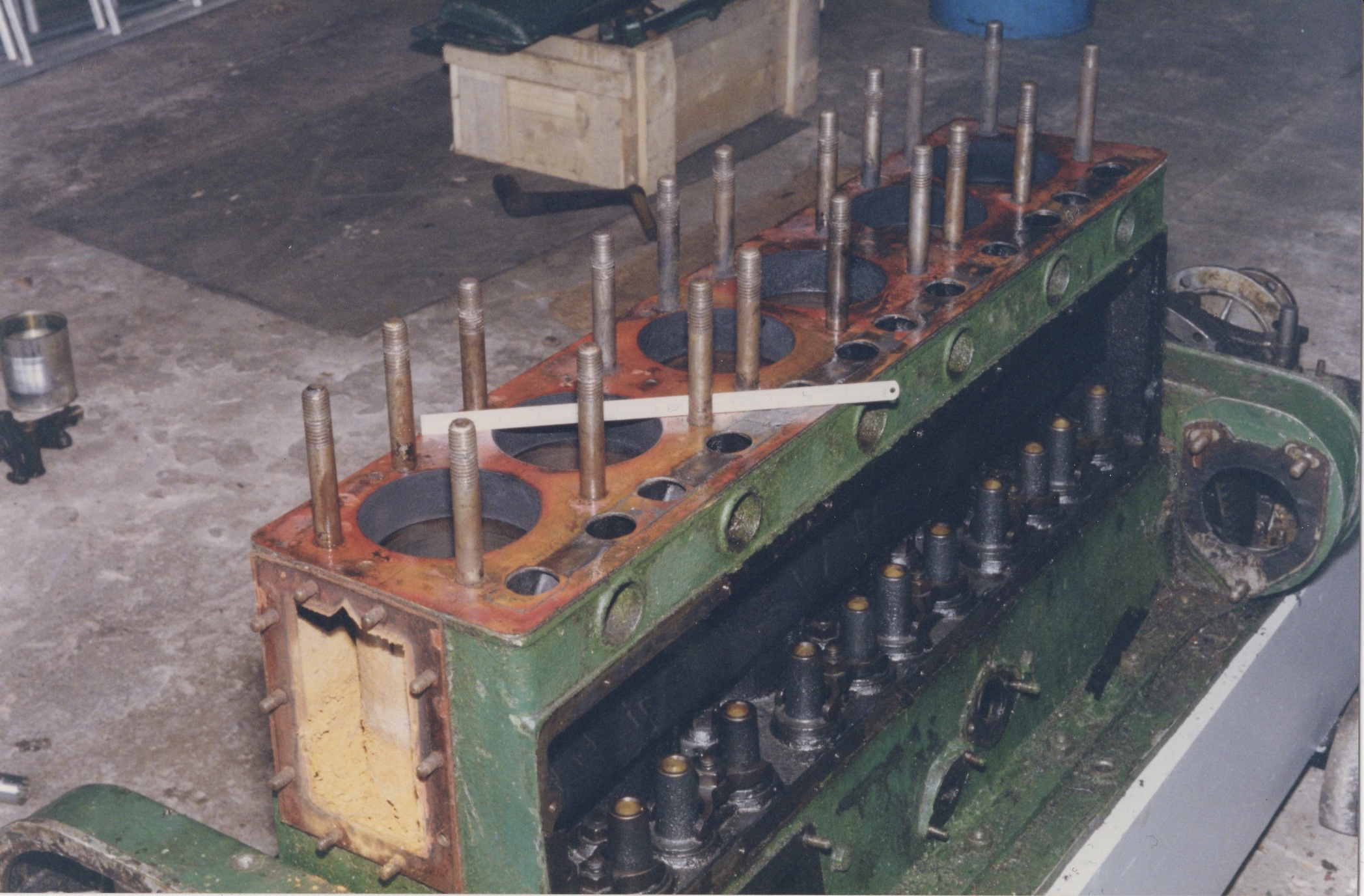

Checking flatness of Cylinder Head
Brooke Boat 26/117

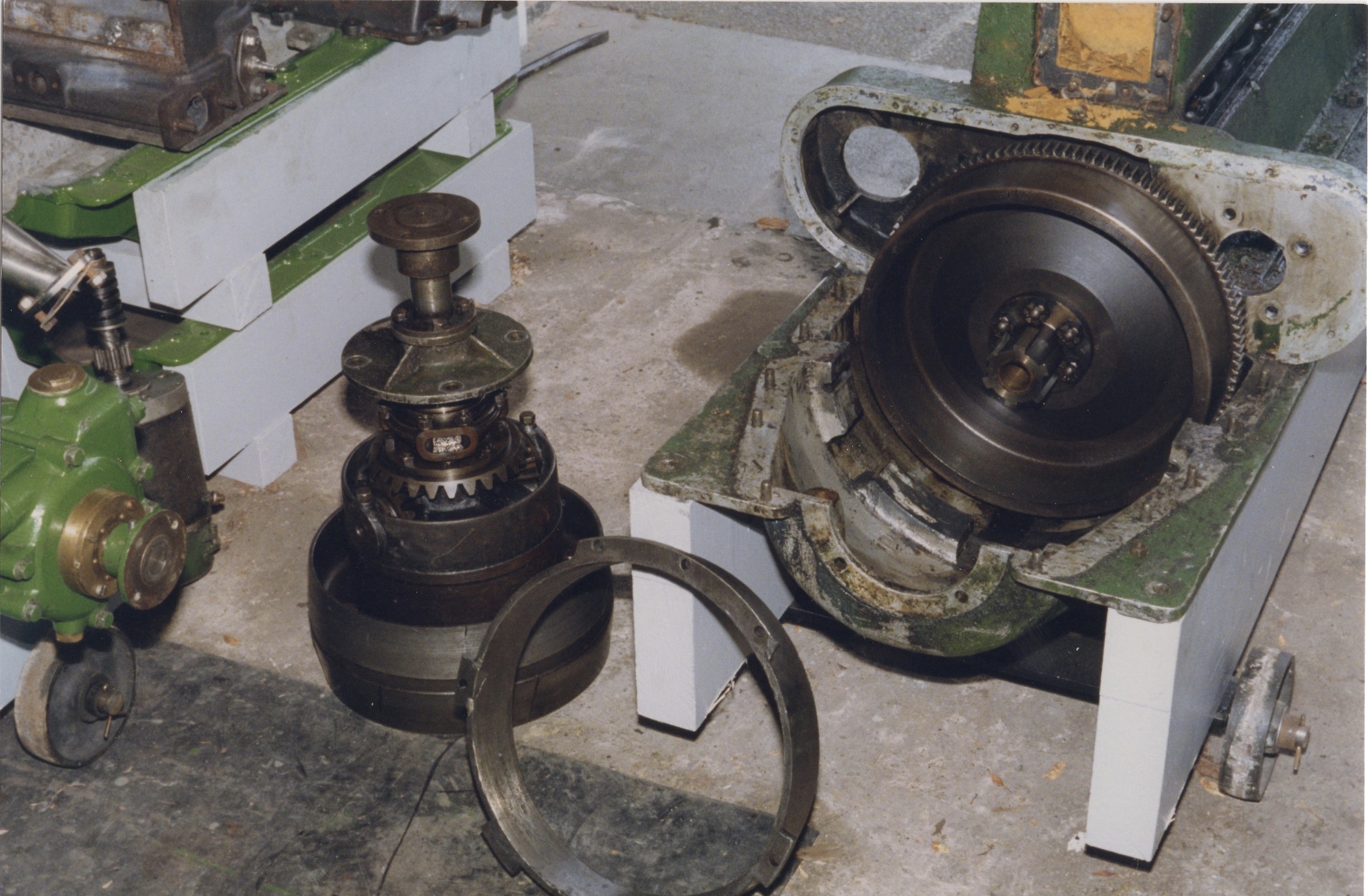

Main drive ring and conical clutch assembly
Brooke Boat 26/117

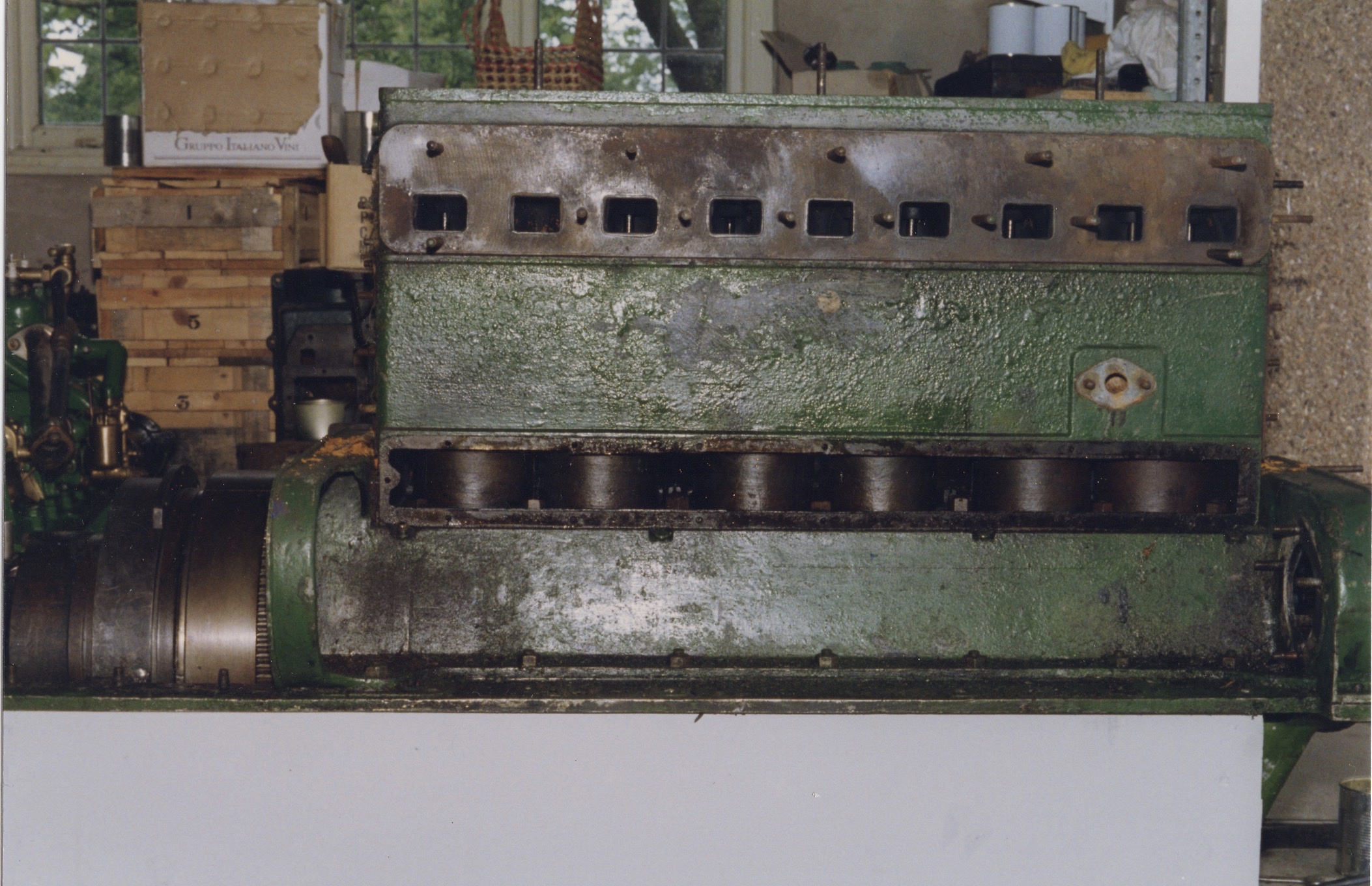

Cylinder Head removed for skimming and cleaning
Brooke Boat 26/117

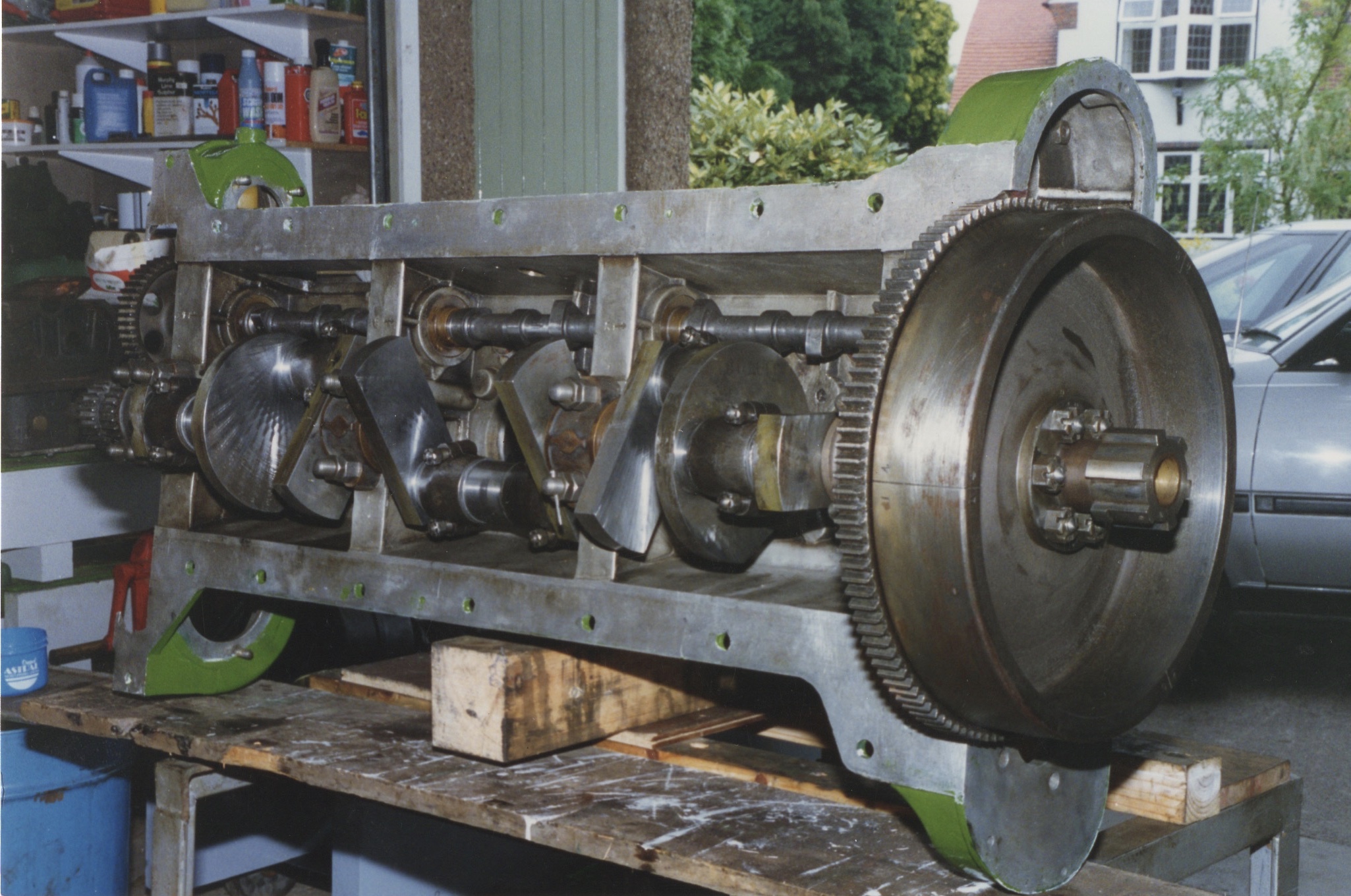

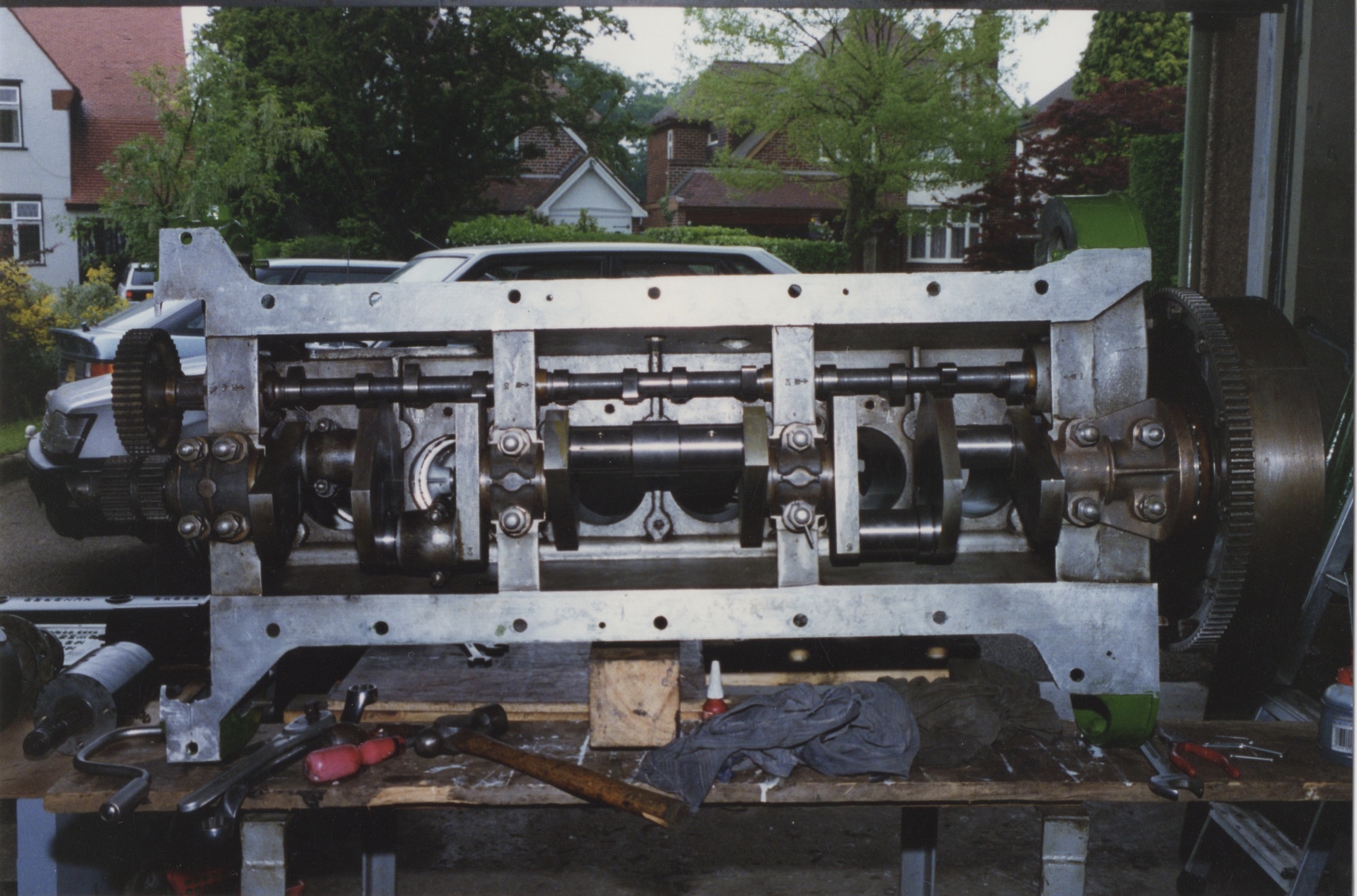

Main Engine Block, Crank-Case & Crank Assembly prior to cleaning
Brooke Boat 26/117

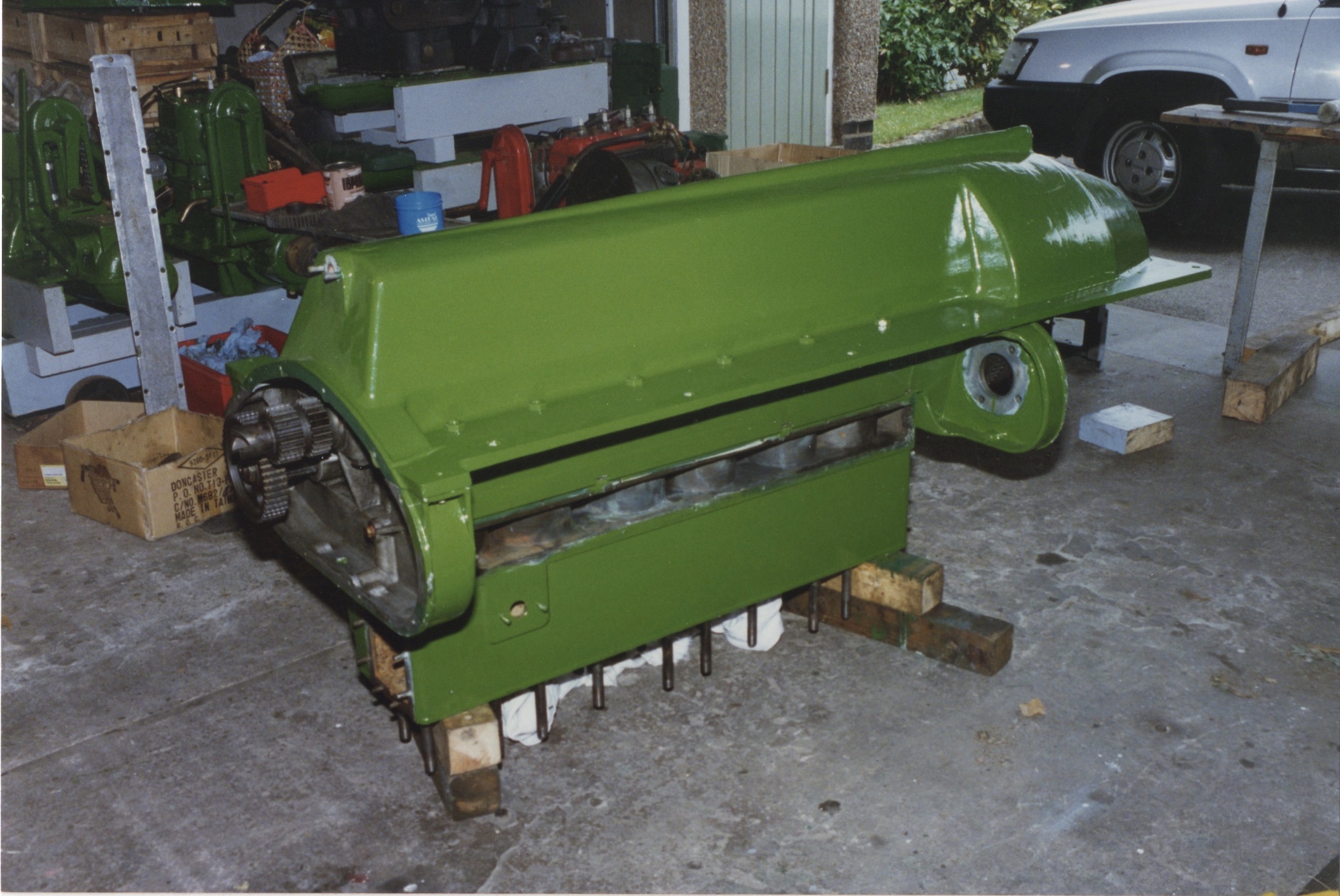

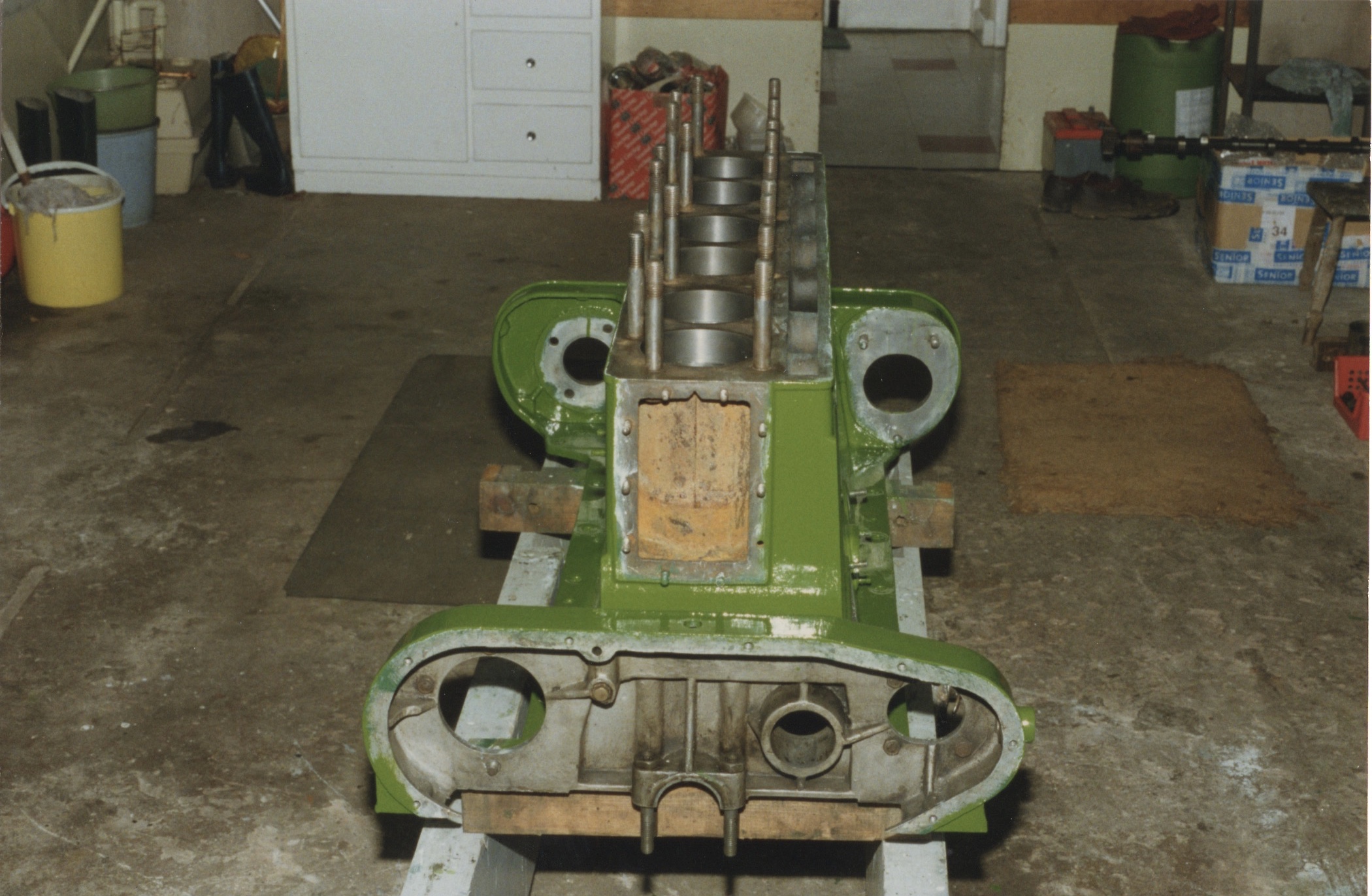

Main Engine Block & Crank Case
returned from cleaning
Brooke Boat 26/117
Engine finishing in ‘Light Brunswick Green’
Brooke Boat 26/117

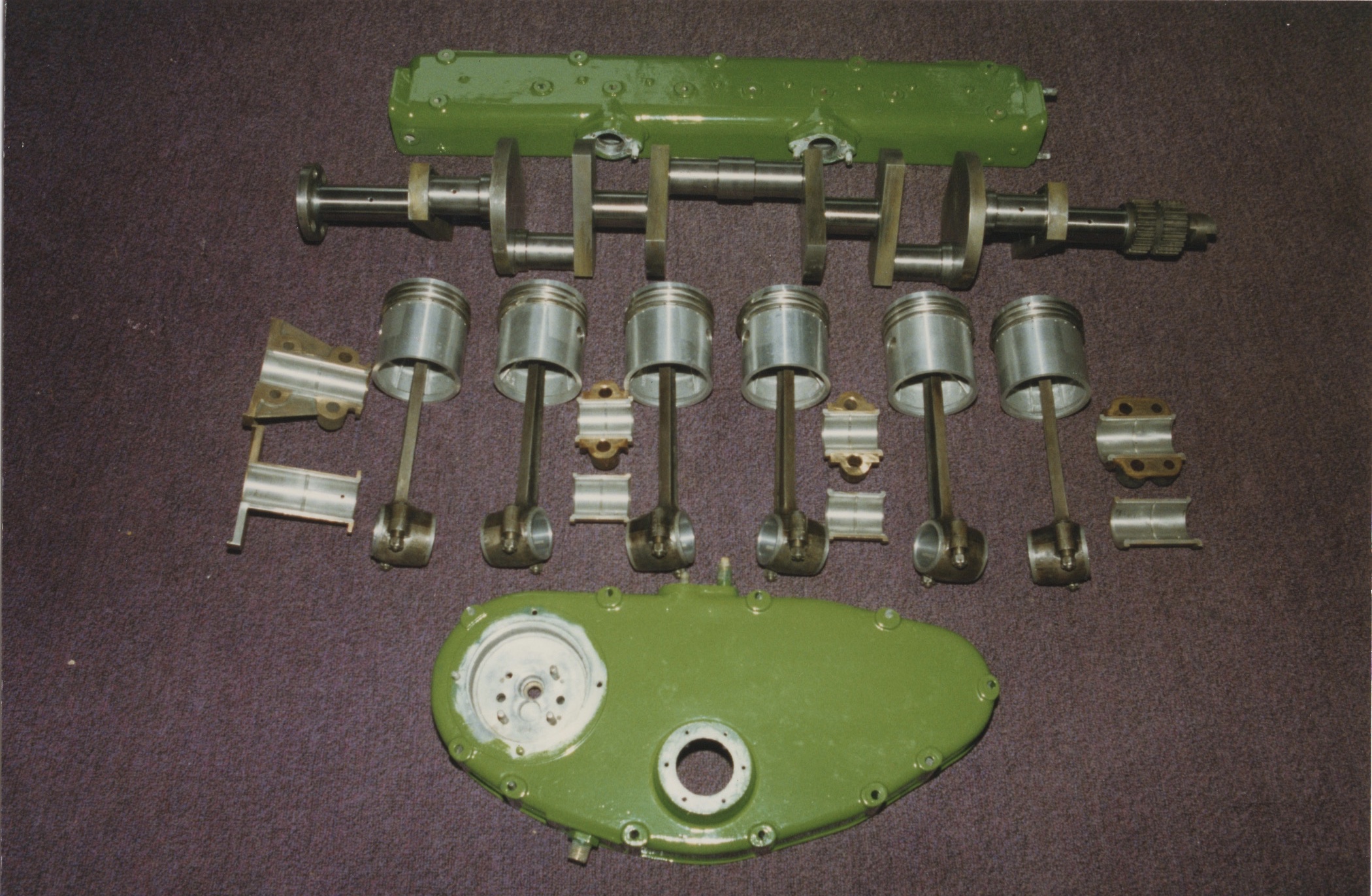

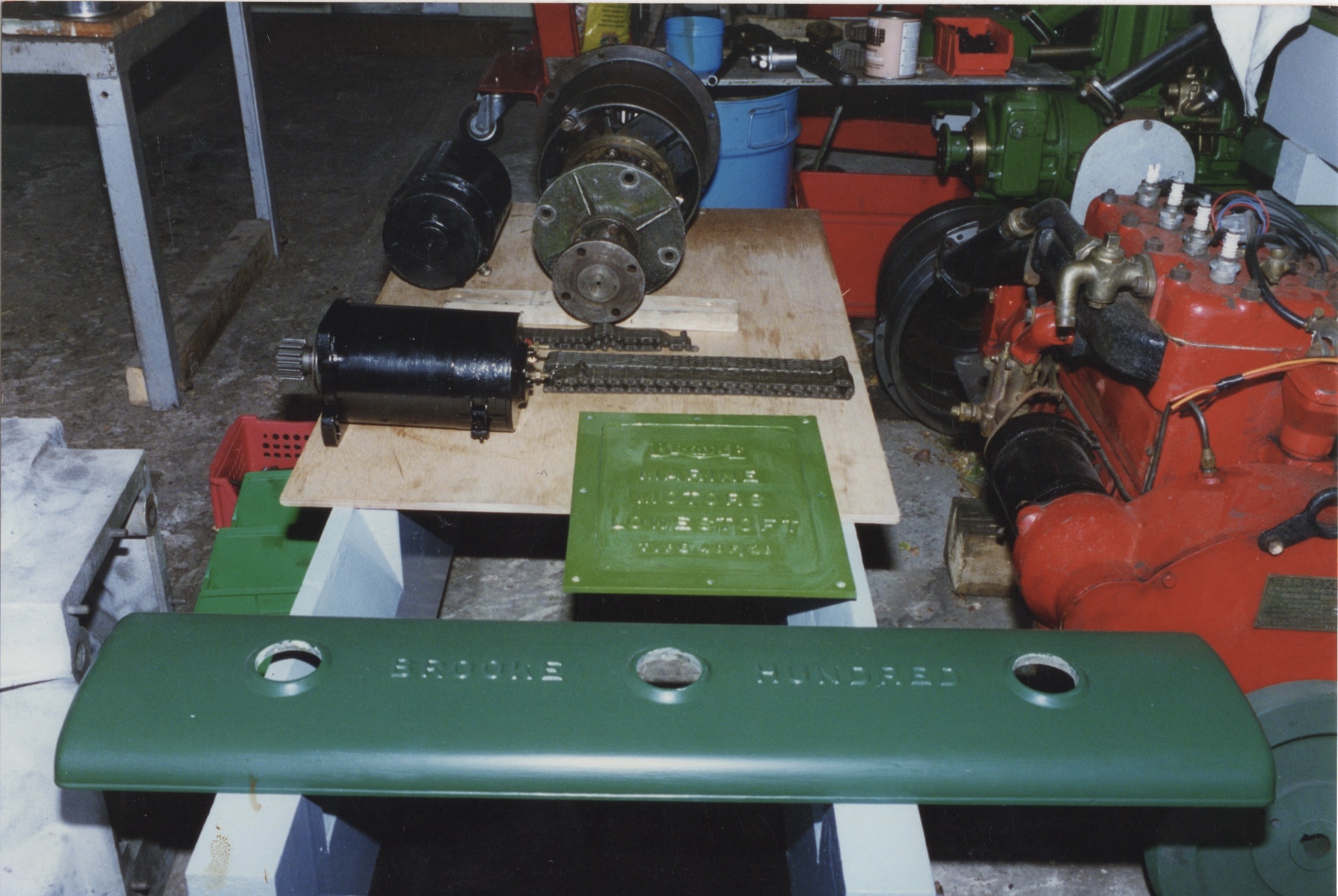

Sundry ‘Ex-stock’ Engine Parts including collars and sleeves
Brooke Boat 26/117
Re-sleeved Block in paint
Brooke Boat 26/117

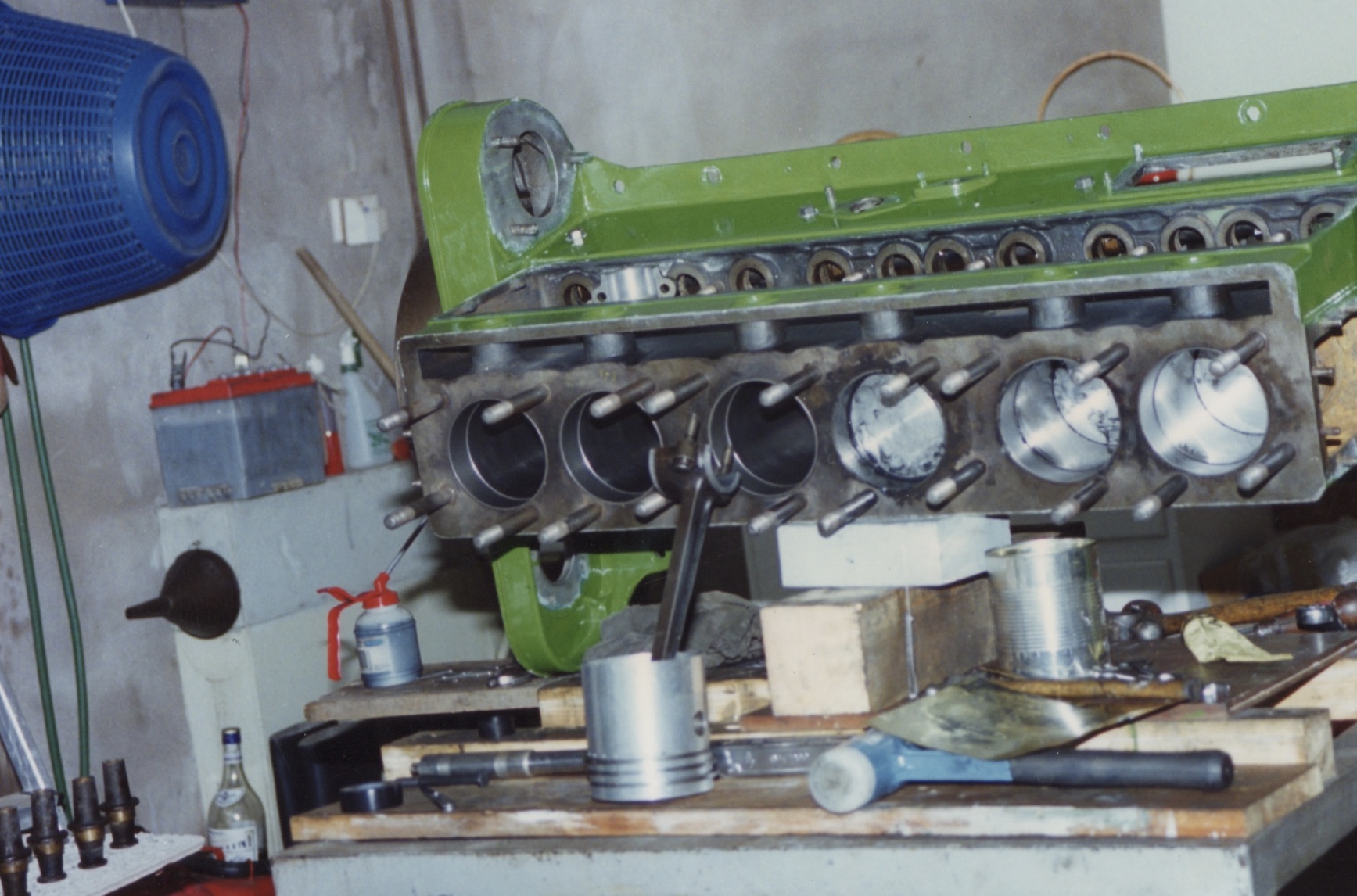

Inserting Pistons, complete with wiper rings
Brooke Boat 26/117
As above, inserting third Piston with Rings
Brooke Boat 26/117

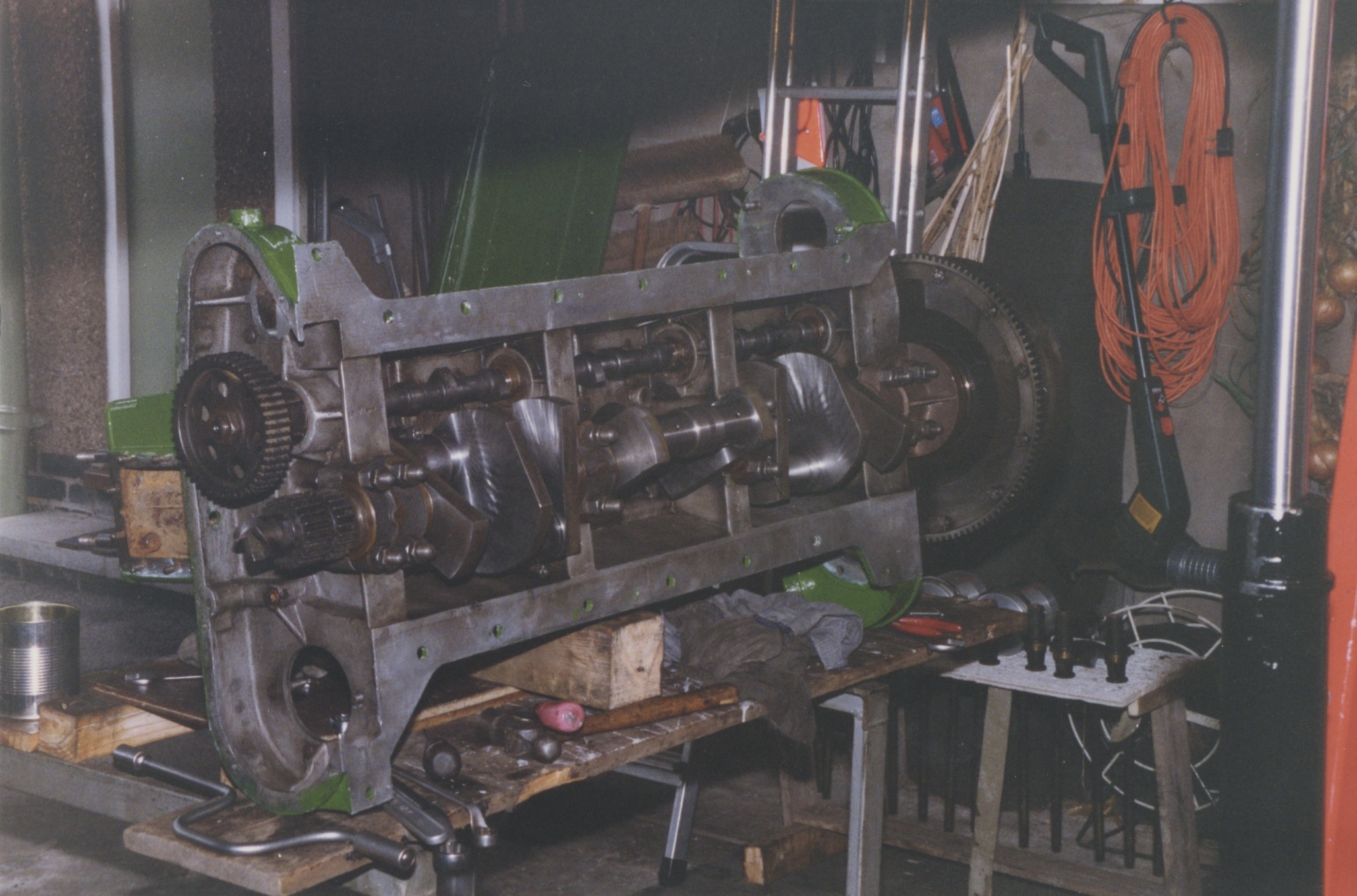

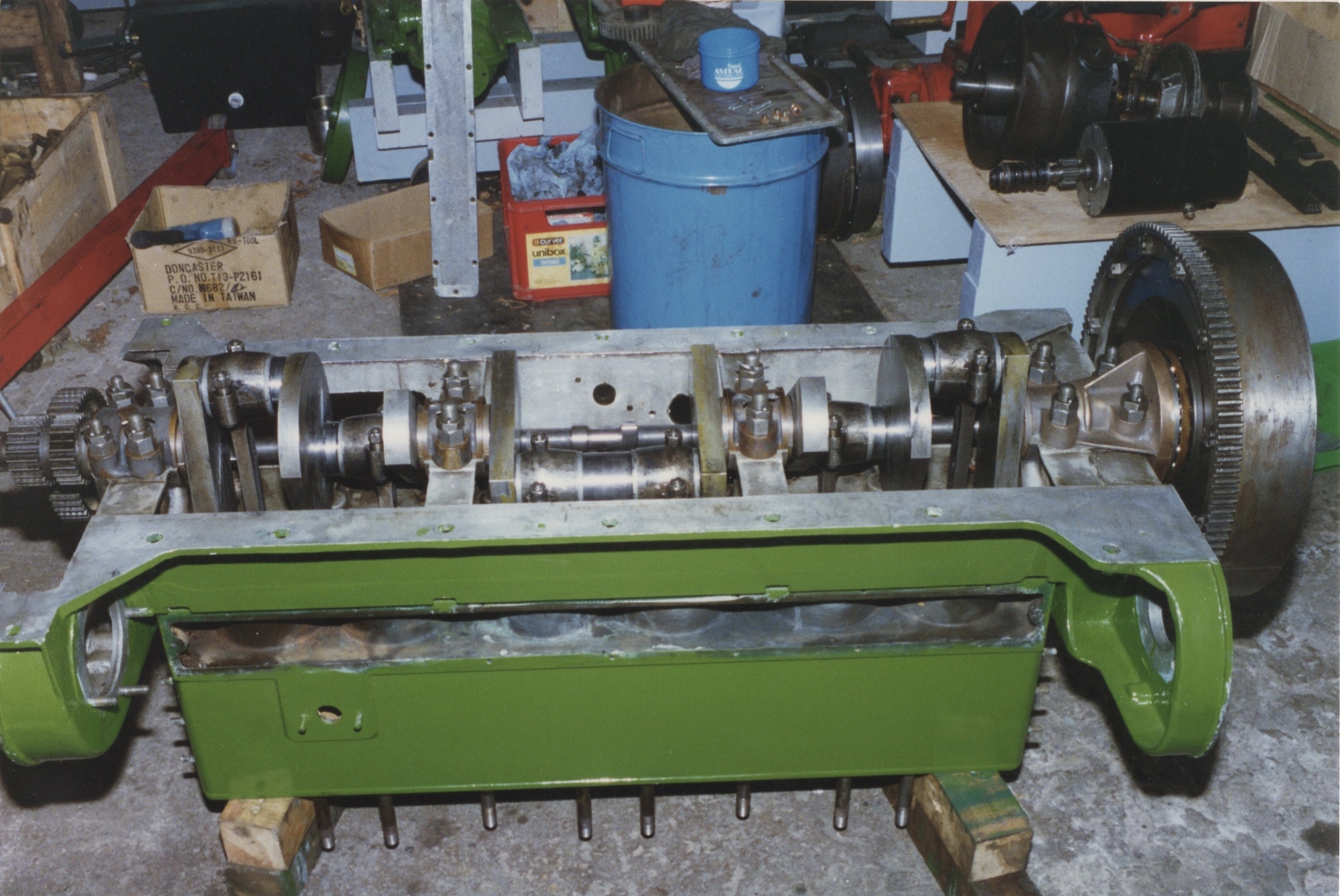

Refurbished Cam and Crank Shaft Assemblies
Brooke Boat 26/117
Preparing to Assemble Engine Build units
Brooke Boat 26/117

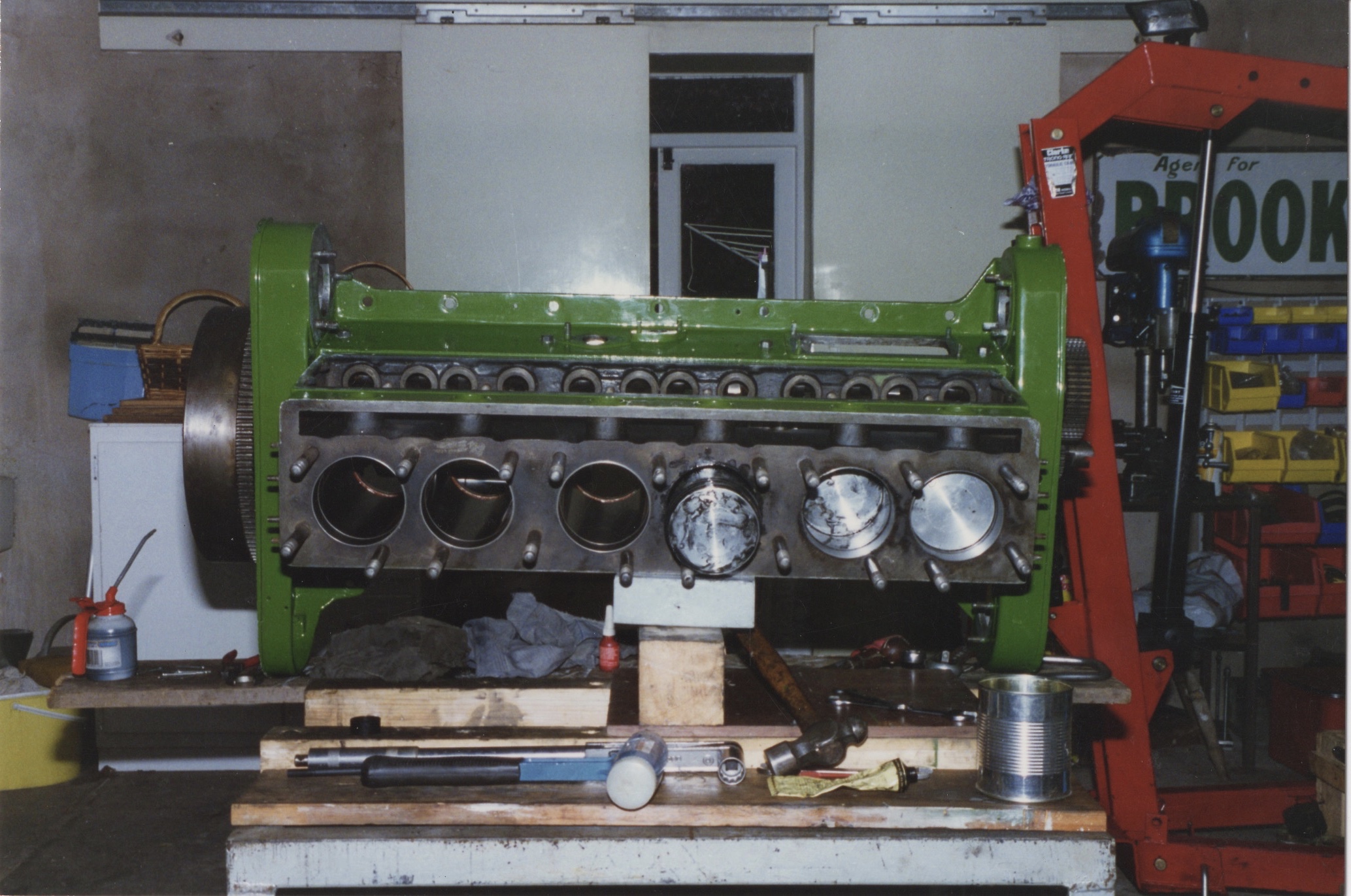

A fourth Piston and Ring Set partially installed
Brooke Boat 26/117
A view on Fly Wheel and Crank Shaft balancing
Brooke Boat 26/117
Tidying up castle nut locking and other sundry items
Brooke Boat 26/117
Making ready for the Sump
Brooke Boat 26/117
… with Sump fitted
Brooke Boat 26/117
Dressing the Rocker Box…
Brooke Boat 26/117
View on Main Crank Ring assembly during fitment of Starter Motor and D.C. Generator
Brooke Boat 26/117
Engine Build Units & Covers
during paint
Brooke Boat 26/117

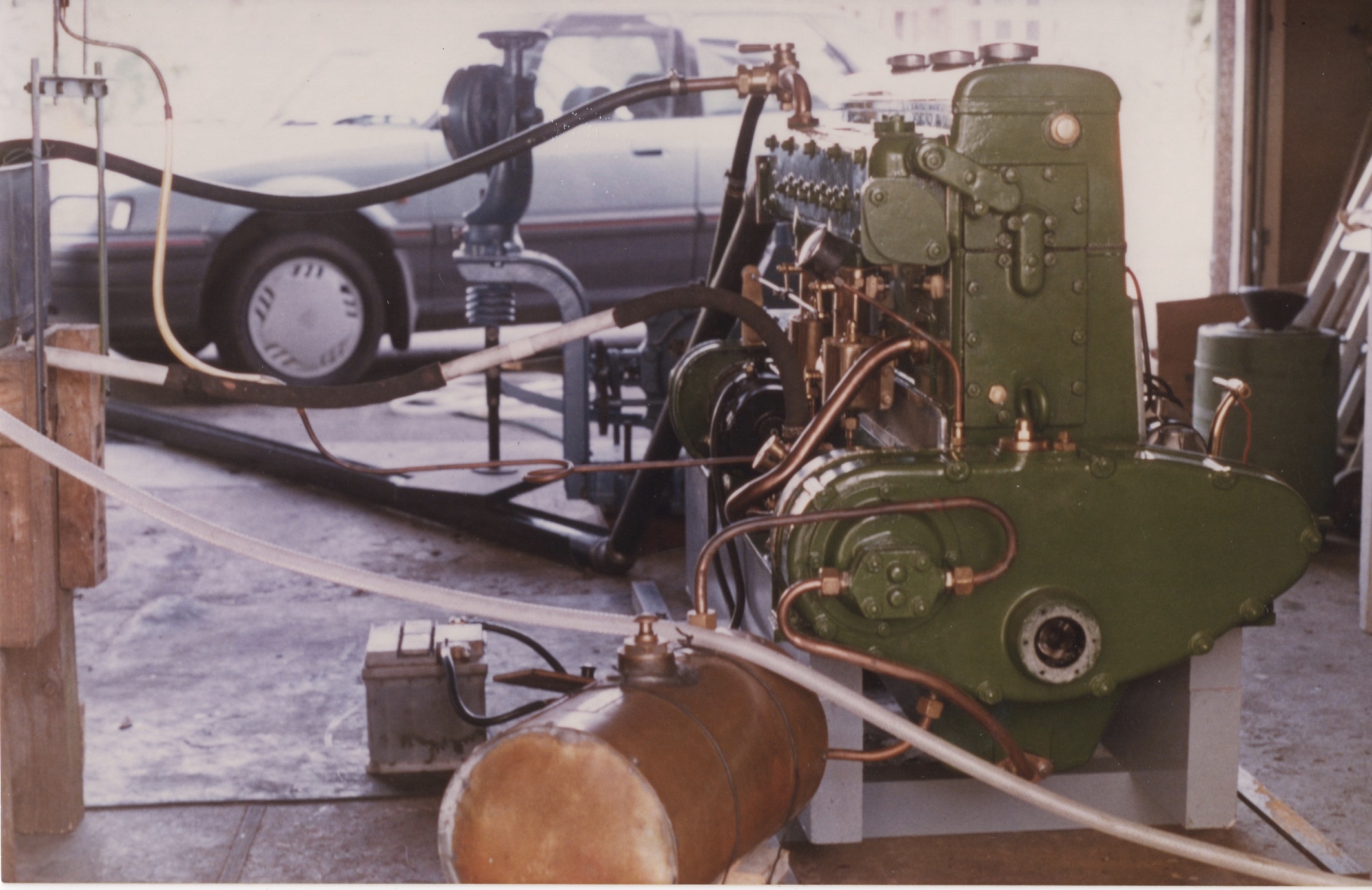

40F-28/30 under test
Brooke Boat 26/117
Dynamometer Testing was under consideration but in the end not thought essential
Brooke Boat 26/117

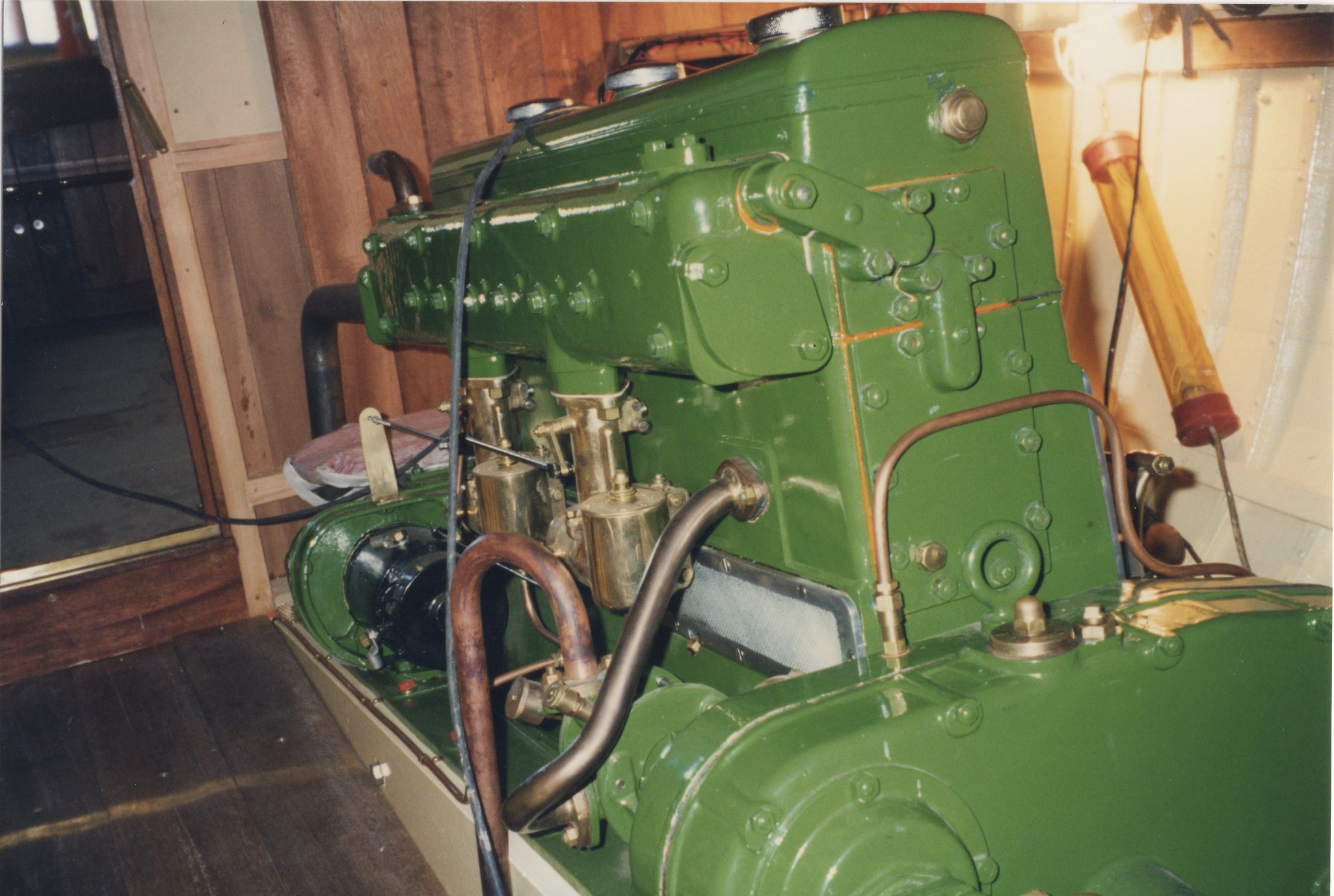

View on Port Side of finished engine - showing 6 off HT Leads, D C Generator, Magneto and Crank-case breather
Brooke Boat 26/117
View on Starboard Side of finished engine - showing 2 x Zenith Up-draught Carburettors with independent Float Chambers, also Epicyclic Water-pump and Starter-motor
Brooke Boat 26/117
Finishing touches showing Conical Clutch access plate and makers plate
Brooke Boat 26/117

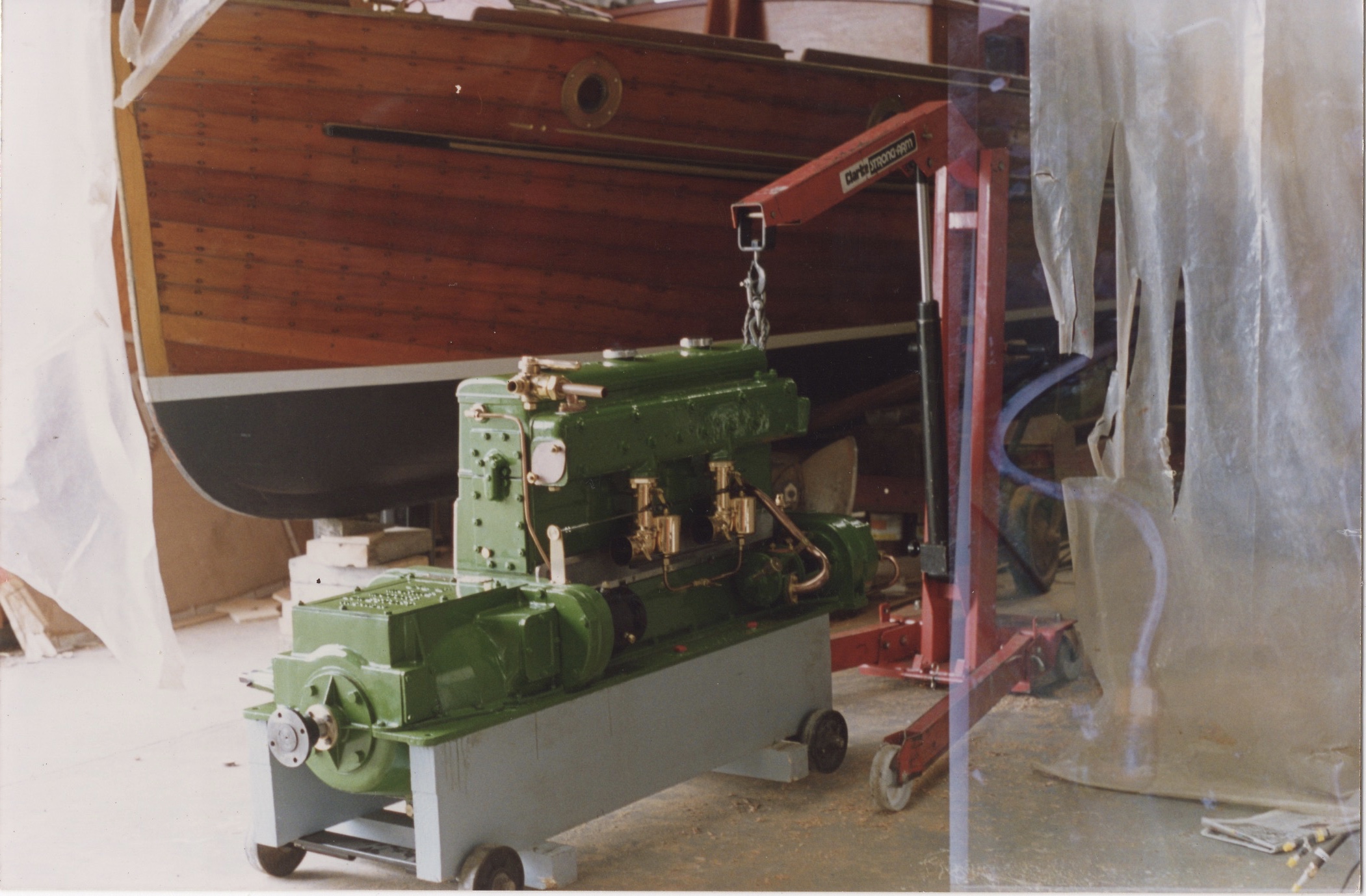

40F-28/30 on Cannon Trolley prior to lifting into position…
Brooke Boat 26/117
Motor during installation on port side showing Magneto and dynamo…
Brooke Boat 26/117
… water inlet pipe viewed from starboard looking Aft, showing the Epicyclic Water- pump, the ‘Up-draft’ Carburettor set & Starter motor.
